BY-WM8 PRO KIT 2 3PC Microphone (BY-WM8PRO-K2)

SKU:
1080421

Availability:In stock

SAR875.00
Including VAT fees.
Taajeer Finance
Pay SAR35.55 for 36 months, for more info please and how to apply please click here.
-
+

Channels: 48
Frequency response: 40 Hz to 18 kHz (+/-3dB)
Operating temperature: 14° F to 122° F (-10℃ to +50℃)
RF output power: ≤10 mW

The BOYA BY-WM8 Pro-K2 is an upgrated UHF Dual-Channel Wireless Microphone System


for capturing audio with dual subjects, features an easy-to-read LCD display, a wide switching RF bandwidth, PLL-synthesized tuning and digital companding circuitry.

The package is suitable for a wide range of wireless applications such as interviews, electronic news gathering (ENG),electronic field productions (EFP), film production, business and educational applications, and more.

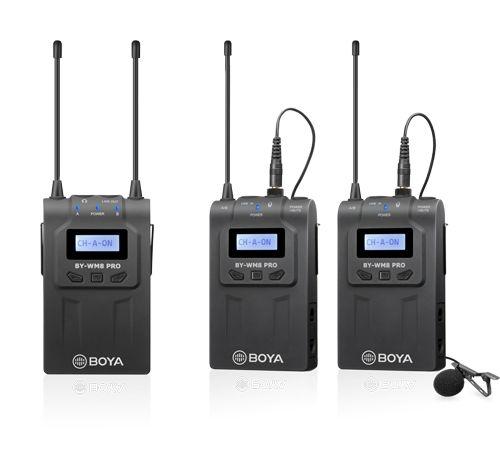

The BY-WM8 Pro-K2 system consists of two bodypack transmitters, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case.

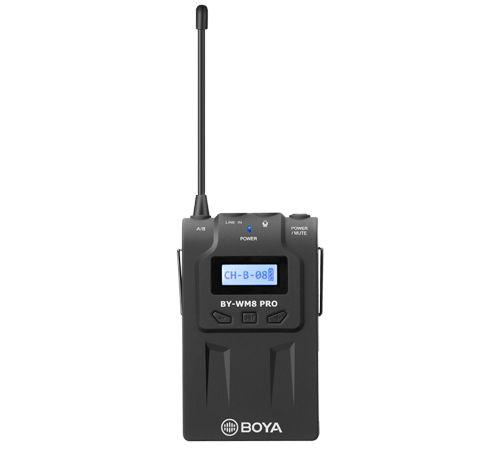

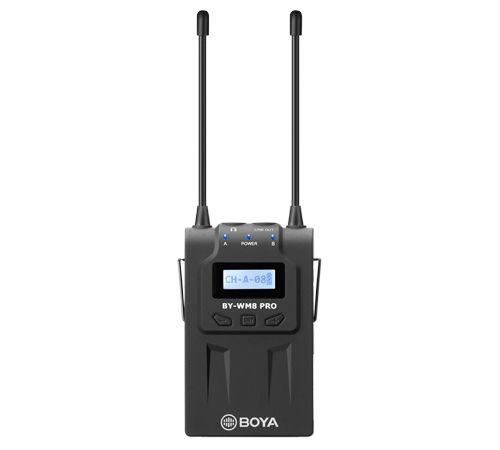

The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack.

Note: To save battery life, if only use one transmitter, please turn OFF the other channel from receiver.

-Digital Companding
-Up to 48 Selectable channels
-Dual-Channel
-Up to 32 MHz of transmission bandwidth
-Easy and flexible wireless synchronization between transmitter and receiver via infrared.
-User-friendly menu operation
-Muting function
-Wide range of accessories adapts the system to most of requirements
-Locked-plug avoids accidental changing of settings
-Transmission Range: up to 100 meters / 300

More Information
EAN6971008021066
Specifications
 Oscillator type  PLL Synthesized Control Oscillator
 Carrier Frequency Range  576.4 MHz-599.9 MHz (Transmitter: A )
568.6 MHz-592.1 MHz (Transmitter: B )
 Channels  48
 Frequency response  40 Hz to 18 kHz (+/-3dB)
 Operation range  100m (300')(without obstacle)
 Operating temperature  14° F to 122° F (-10℃  to +50℃)
 Storage temperature  14° F to 131° F (-10℃  to +55℃)
Transmitter
 RF output power  ≤10 mW
 Antenna  1/4λ wire antenna
 Spurious emission  250 nW or less
 Audio input connector  3.5mm mini jack
 Reference audio input level  –60 dBV (MIC input, 0 dB attenuation)
 Reference deviation  ±5 kHz (–60 dBV, 1 kHz input)
 Input frequency range  20 Hz-20 KHz
 Distortion  0.5% or less
 Power supply  Two AA size batteries
 Operation time  About 6 hours
 Dimensions  208(H)  × 67(W) × 29(L)mm
 Weight  80g without batteries
Receiver
 Antenna  1/4λ wire antenna
 Audio input connector  3.5mm mini jack
 Signal-to-noise ratio  70 dB or more
 Distortion  0.5% or less
 Headphone output level  30mW (16 Ω)
 Audio output level  –60 dBV
 Power supply  Two AA size batteries
 Operation time About 4 hours
 Dimensions  208(H) × 67(W) × 29(L)mm
 Weight  90g without batteries
Lavalier Microphone
 Transducer  Back electret Condenser
 Polar pattern  Omni-directional
 Frequency Range  35Hz ~ 18 KHz
 Signal / Noise  74dB SPL
 Sensitivity  -30dB +/-3dB / 0dB=1V/Pa, 1 kHz
 Connector  3.5mm locking mini plug
 Length  1.2m (4’)
