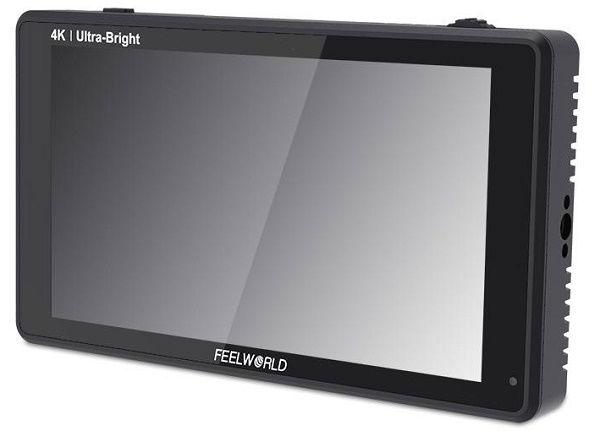

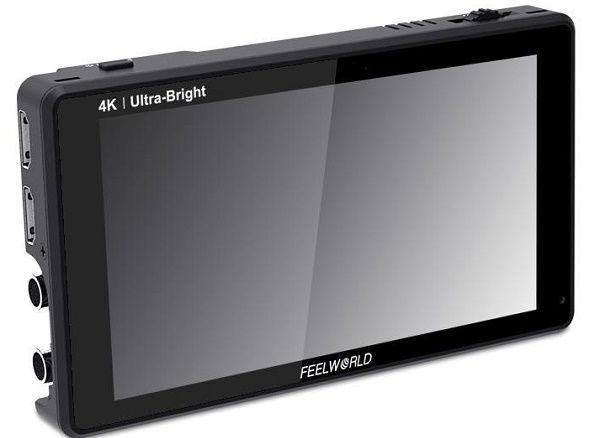

The LUT6S equips filmmakers with the benefits of a large on-camera display without making the camera setting up troublesome. LUT6S is packed with high end monitoring features in a small, lightweight package that can be connected to virtually any camera. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the left side and SD card slot on the bottom, and space for a NP-F battery on the back. The outer frame features standard ¼" mount points on the bottom and right for attaching it to cameras and rigs. This design detail makes the LUT6S easy to attach to a camera and easy to share with a team member or client on set.
Attach to Cameras, Equipment Carts or Hang It Anywhere

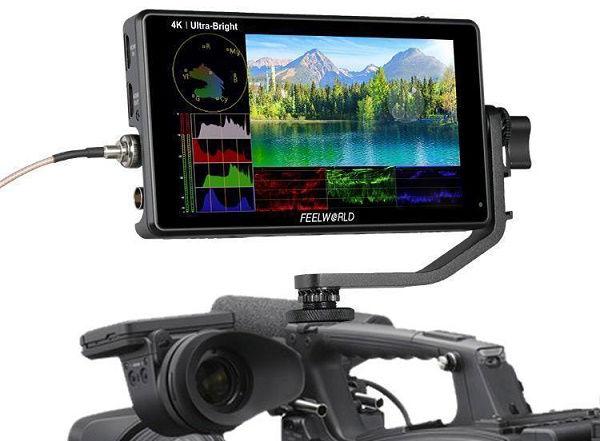

The standard sized mounting points make it easy to mount and are compatible with third party rigging equipment. There are 2 mounting points located on the bottom and right. Using the bottom 1⁄4 inch hole, you can securely attach it to the top of your camera as the ultimate viewfinder! The 1⁄4-inch hole on the right side can be mounted on other equipment with magic arm, bracket, etc., for the entire crew to monitor the screen. The LUT6S monitor can be rotated 360°with two different ways, for viewing convenience. (1.The monitor can be rotated 360°from up to down through the side mounting point of tilt arm; 2. The monitor can be rotated 360°from left to right through the bottom mounting point of tilt arm).
6” LCD, Full HD 1920x1080
The LUT6S enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1080 maximum resolution on a 6-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2600 nits and displays a 1000:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions.
Connect to Professional Cameras, Camcorders and DSLR's

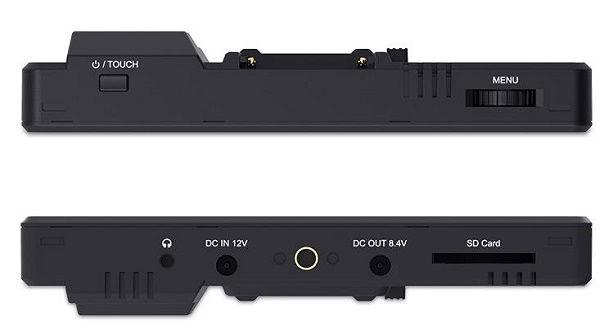

With both 3G-SDI and 4K HDMI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack. For power, there’s a 12V DC input and one NP-F battery slot.The back of the monitor have the fan that automatic heat dissipation according to backlight brightness. Under "auto", if the backlight brightness is greater than 80, the fan will turn on automatically.
2600nit Super Bright, Visible in Sunlight

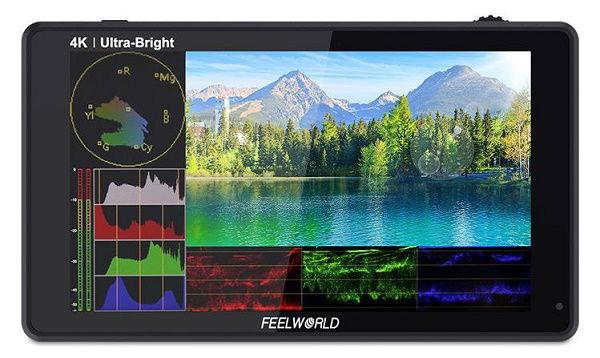

The fully adjustable 2600nits screen is incredibly bright, making it perfect for shooting indoors or out. The high bright 2600nits screen is at almost 5 times the brightness of conventional field monitors, lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!. The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist.
