FEELWORLD LUT7S 7 Inch 2200nits 3D LUT Touch Screen DSLR Camera Field Monitor (FEELWORLD-LUT7S)

SKU:
1084110

Availability:In stock

SAR1,900.00
Including VAT fees.
Taajeer Finance
Pay SAR77.19 for 36 months, for more info please and how to apply please click here.
-
+
Eligible for 0% Installment Option

Screen Size:7" IPS
Resolution:1920x1200 pixels
Aspect ratio:16:10
Brightness:2200cd/m² (Light Sensor)


FEELWORLD

More Resolution, Less Reflection

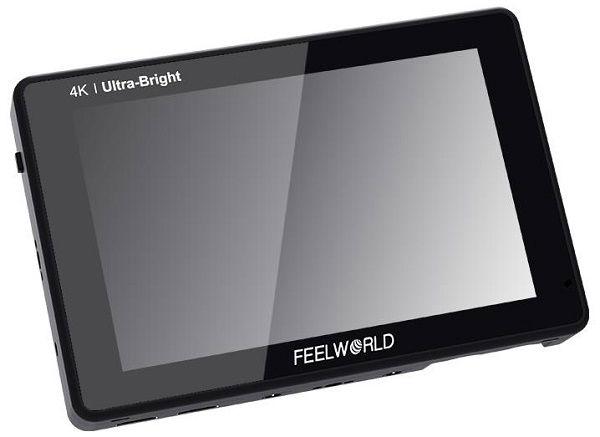

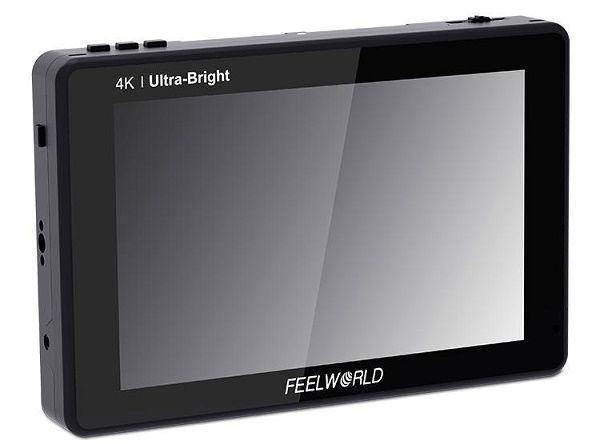

The FEELWORLD LUT7S enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1200 maximum resolution on a 7-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2200 nits and displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 323 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.


FEELWORLD

Combines Reliability with Useability

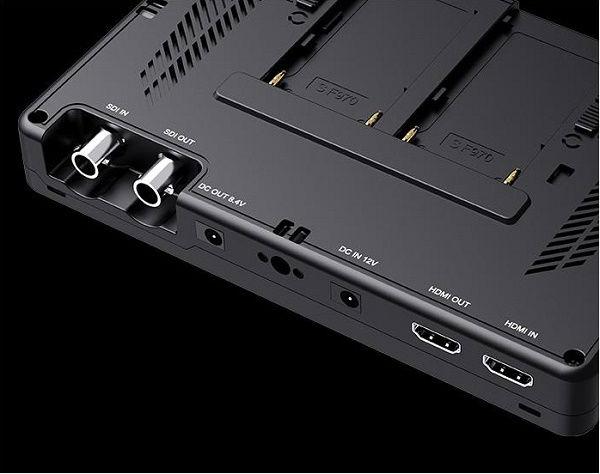

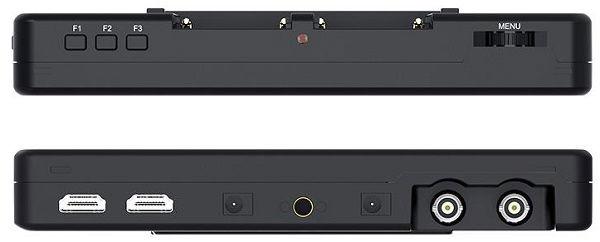

The LUT7S equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome. FEELWORLD LUT7S is packed with high end monitoring features in a small, lightweight package that can be connected to virtually any camera. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the bottom and SD card slot on the side, and space for two NP-F batteries on the back. The outer frame features standard ¼" mount points on the bottom, left and right for attaching it to cameras and rigs. This design detail makes the LUT7S easy to attach to a camera and easy to share with a team member or client on set.


FEELWORLD

2200nit Daylight Viewable

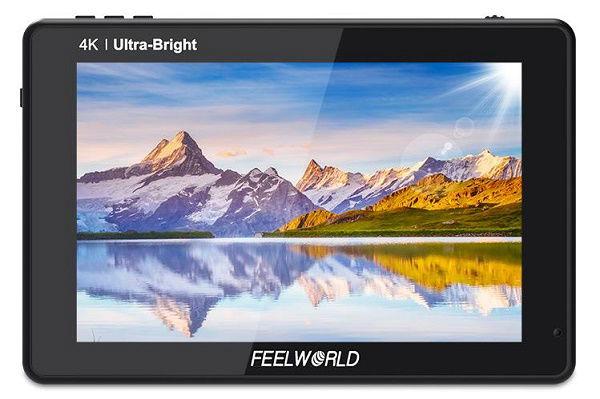

The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!


FEELWORLD

Load Custom 3D LUTs to Recreate Film Looks!

Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use built-in LOG to Rec.709 video or upload .cube files. LUT7S allows you to load internally up to custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.


FEELWORLD

Power Your DSLR or Mirrorless Camera

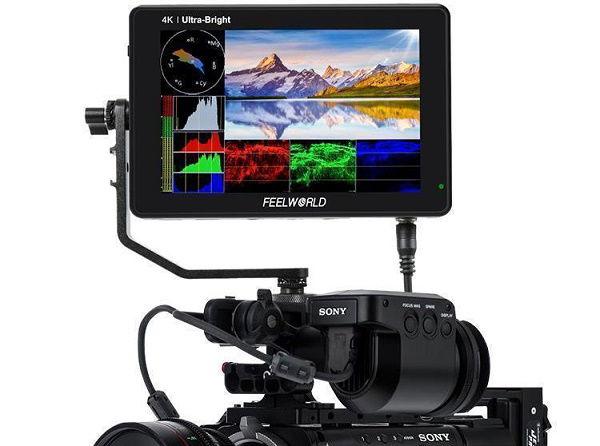

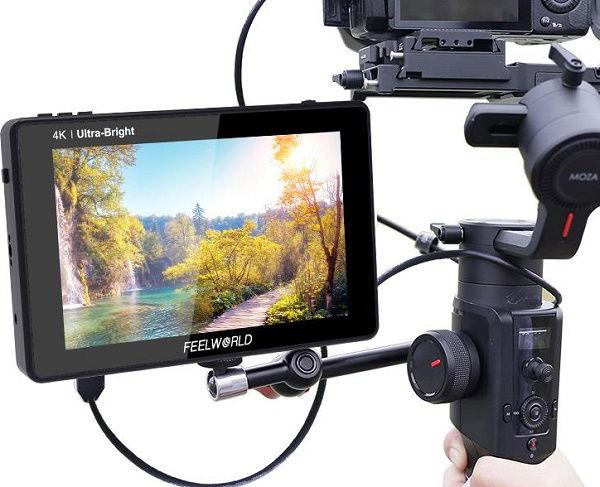

The FEELWORLD LUT7S is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the LUT7S provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT7S extends camera run-time, while providing a more usable display.The standard sized mounting points make it easy to mount and are compatible with third party rigging equipment. There are 3 mounting points located on the bottom, left and right. Using the bottom 1⁄4 inch hole, you can securely attach it to the top of your camera as the ultimate viewfinder! The 1⁄4-inch holes on the left and right sides can be mounted on other equipment with magic arm, bracket, etc., for the entire crew to monitor the screen.

More Information
Specifications
Model  LUT7S
 Screen Size  7" IPS
 Resolution  1920x1200 pixels
 Pixel Pitch  0.07875 (H) x 0.07875 (W) (mm)
 Aspect Ratio  16:10
 Brightness  2200cd/m² (Light Sensor)
 Contrast Ratio  1200:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 80°/80°(U/D)
Input
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
Output
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 1 X DC  Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor.
 Audio  3.5mm Stereo Headphone
SDI Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
 Input Voltage  DC7~24V
 Power Consumption  ≤20W
 Working Temperature  -20°C~50°C
 Storage Temperature  -30°C~60°C
 Install Way  1/4"-20 Thread Socket (Left, Right, Bottom)
 Battery Plate  Dual F970 Battery Plate
 Unit Size  190Lx126Hx27D (mm)
 Unit Weight  460g
