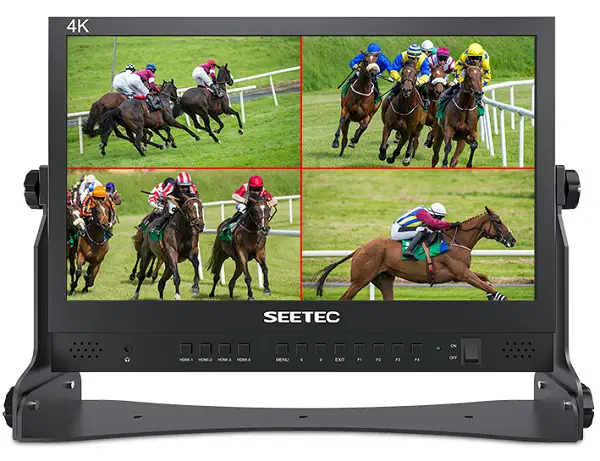

SEETEC ATEM156 15.6 Inch Live Streaming Broadcast Director Monitor (FEELWORLD-ATEM156)

Will be delivered within 2 to 5 business days.

SKU:
1084108

Availability:In stock

SAR2,300.00
Including VAT fees.
Taajeer Finance
Pay SAR93.44 for 36 months, for more info please and how to apply please click here.

Screen Size:15.6" IPS
Resolution:1920×1080 pixels
Aspect ratio:16:9
Brightness:250cd/m²


FEELWORLD





15.6” LCD, Full HD 1920x1080

The SEETEC ATEM156 equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 800:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 170° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.


FEELWORLD





Easy Button Operation

When you are busy at the shooting scene, you need to be able to easily control the equipment, and the ATEM156 can meet your needs. It is equipped with a simple control panel, , allowing you to be comfortable in the shooting process. With 4 separated HDMI buttons, you can switch the HDMI signal source quickly; with 4 shortcut keys (F1 ~ F4), you can customize the shortcut key functions and quickly call them out.


FEELWORLD





Attach to Camera Support or Hang It Anywhere

There are 3 mounting points located on the U-shaped bracket. The standard sized mounting points make it easy to mount and are compatible with third-party rigging equipment. Using the 1/4 inch holes, you can hang it from rigs or mounted it on the camera support, and use it as a monitor for the entire crew. And you can also set it up on a table to monitor. For outdoor shooting, you can use an external battery, and you can connect a standard DC power supply when using it in a shed or post-production room.


FEELWORLD



Connect up to 4 cameras, game consoles or computers!

ATEM156 has 4 X 4K HDMI input and output, which can connect up to 4 cameras, game consoles, computers and other equipment. At the same time, it can also loop out 4 HDMI signals to other devices, such as ATEM Mini or ATEM Mini Pro. This is very useful for studio and live multi-camera shooting. The back of ATEM156 is equipped with a 12V DC power input and a V-mount battery plate. You can connect its 12V DC input for continuous power, or you can install a V-mount rechargeable battery on the V-mount battery plate to realize mobile applications.

More Information
Specifications
Model  ATEM156
 Screen Size  15.6" IPS
 Color Depth  16.7M colors (8-bits)
 Resolution  1920×1080 pixels
 Pixel Pitch  0.17925 (H) X 0.17925 (V)  mm
 Aspect Ratio  16:9
 Brightness  250cd/m²
 Contrast Ratio  800:1
 Backlight  LED
 Viewing Angle  85°/85°(L/R) 85°/85°(U/D)
Input
 4 X HDMI  HDMI (Support 4K 30Hz)
Output
 4 X HDMI  HDMI (Support 4K 30Hz)
 Audio Out  3.5mm Stereo Headphone
 Input Voltage  DC12~24V
 Power Consumption  ≤12W
 Working Temperature  -10°C~50°C
 Storage Temperature  -20°C~60°C
 Unit Size (mm)  372L×262H×28.4D (mm) (Without Bracket)
 Unit Weight  1.57kg (Without Bracket)
